messing with timeing for easie starting... cr250 ignition

r1yfz · Post by **r1yfz** » March 9th, 2010, 6:52 am

some where someone was talking about advancing or maybe retarding the ignition 5*-10* to allow for easy starting....

can someone show pictures of what they are doing exactly?

hoofarted · Post by **hoofarted** » March 9th, 2010, 7:46 am

Loosen the stator plate bolts a tad and turn it in the same direction as the motor rotates (Left IIRC) - which would be advancing. The slots allow for only a little bit of adjustment. Try a little at a time and leave it to your liking.

r1yfz · Post by **r1yfz** » March 9th, 2010, 7:50 am

so turn it counter clockwise?

if i turned it to the max, about how far would that be?

what will this do to the performance?

hoofarted · Post by **hoofarted** » March 9th, 2010, 7:53 am

r1yfz wrote:so turn it counter clockwise?

if i turned it to the max, about how far would that be?

what will this do to the performance?

When the stator cover is off, operate the kicker by hand, paying attention to which way it spins. Loosen the stator plate bolts and turn it a tiny bit in the same direction. Max depends on the ignition you have in the bike. slots are only ~.75" long on each side...so it doesn't move much. Also, you may need to fatten up your pilot (slow speed screw) by 1/2 - 1 turn in as well - found mine was pinging on the low end. Fattened up the pilot remedied it.

r1yfz · Post by **r1yfz** » March 9th, 2010, 8:42 am

thanks for the info! im going to give that a try!

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » March 9th, 2010, 12:05 pm

hoofarted wrote:...turn it in the same direction as the motor rotates (Left IIRC) - which would be advancing. ...

WTF!

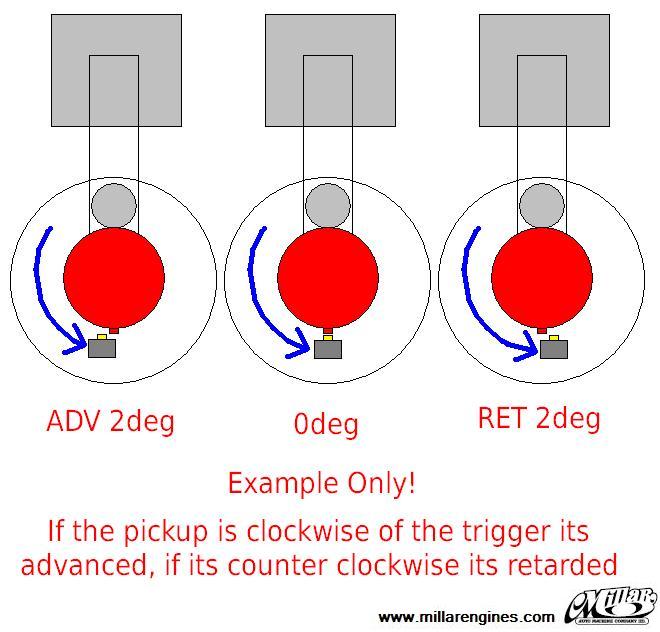

maybee this will make sense, if the spark happens before tdc its advance, after is retarded

Post by **AlisoBob** » March 9th, 2010, 12:09 pm

Roostius_Maximus wrote:
hoofarted wrote:...turn it in the same direction as the motor rotates (Left IIRC) - which would be advancing. ...
WTF!

hoofarted · Post by **hoofarted** » March 9th, 2010, 12:14 pm

Shit. I'm bass-ackwards....

Like I said...IIRC..which was incorrect.

Post by **AlisoBob** » March 9th, 2010, 12:16 pm

Are those cast or forged pistons Rooosty?

r1yfz · Post by **r1yfz** » March 9th, 2010, 12:23 pm

now im lost... i will pm you a pic tonight roost

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » March 9th, 2010, 12:23 pm

billet

Post by **AlisoBob** » March 9th, 2010, 12:33 pm

r1yfz wrote:now im lost... i will pm you a pic tonight roost

Turning the stator plate the SAME direction of the flywheel RETARDS the timing

Turning the stator plate the OPPOSITE direction of the flywheel ADVANCES the timing.

Get it ?

Post by **AlisoBob** » March 9th, 2010, 12:34 pm

I asked Roosty this....

" Roosty I set my clock to get up at 4:45am, cuz I want to be up by 5am but I also set the clock ahead... so 5:00am is really 4:45am.

Am I advanced, or retarded? "

Roosty replied, "YOUR retarded....."

hoofarted · Post by **hoofarted** » March 9th, 2010, 12:35 pm

Kinda how I felt...

r1yfz · Post by **r1yfz** » March 9th, 2010, 2:45 pm

AlisoBob wrote:
r1yfz wrote:now im lost... i will pm you a pic tonight roost
Turning the stator plate the SAME direction of the flywheel RETARDS the timing

Turning the stator plate the OPPOSITE direction of the flywheel ADVANCES the timing.

Get it ?

so clockwise... got it

http://www.youtube.com/user/500bigbore · Post by **Roostius_Maximus** » March 9th, 2010, 2:51 pm

yessum

stu460 · Post by **stu460** » March 28th, 2010, 4:43 pm

AlisoBob wrote:
Roostius_Maximus wrote:
hoofarted wrote:...turn it in the same direction as the motor rotates (Left IIRC) - which would be advancing. ...
WTF!

I wouldnt want hoofarted to time my bike....Fuck me swinging..
